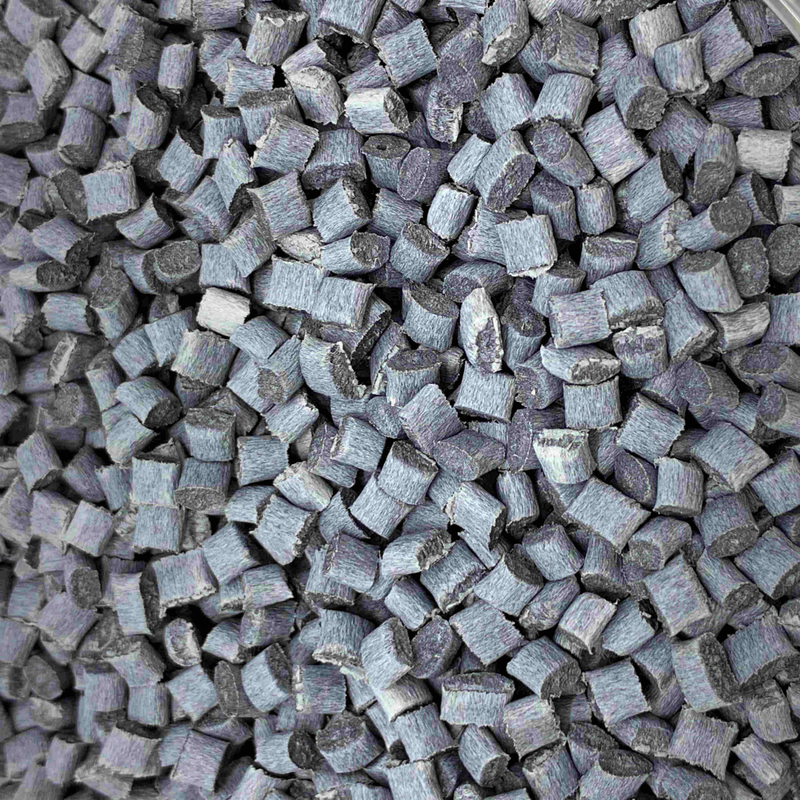

Grey Electrically Conductive Carbon Masterbatch , Anti Static Dissipative
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ROHS, REACH |
| Model Number: | TH3045 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 1000TONS/M |
|
Detail Information |
|||
| Pigment: | Antistatic Pigments | Product Name: | Conductive Masterbatch |
|---|---|---|---|
| Shape: | Small Particles | Grade: | Injection Grade. Extrusion Grade Etc |
| Function: | Eletrically Conductive Or ESD Protection | Lead Time: | 3-5 Days After Payment Received |
| Material: | Antistatic | Application: | IC TRAY |
| High Light: | conductive anti static dissipative,electrically conductive masterbatch,Electrically Conductive Carbon Masterbatch |
||
Product Description
Grey Electrically Conductive Carbon Masterbatch , Pigment Masterbatch
Product Description
Anti static masterbatches are for commodity plastics. Commodity plastics by nature possess an electrical insulating property which gives them the potential to built-up high static charge on their surfaces due to friction caused by dry air moving over them or movement against other the surfaces.
By virtue of their insulating nature, polymers of all types allow static charge to build-up on their surfaces, particularly in the case of films and fibers, which have large surface area to volume ratio. Such static charge build-up leads to several undesirable consequences in the final product. For instance, built-up static charge can attract dust onto a food package, which is undesirable aesthetically. At times, static charge can damage circuit boards in electronics packaging and may cause hazards of fire or explosion in the vicinity of flammable materials.
Benefits
- easy & excellent dispersion
- good balance of conductive, mechanical & flow properties
- high extrusion throughput
- an excellent price performance ratio
- prevents static charge
Features
- Provides lubricating effect in the extrusion process
- Smooth and shiny surface on the end product
- Reduces electrical resistant on the surface
- Uniform cell size in EPE foams
- Excellent insulating properties
- Compatible with LDPE, LLDPE, HDPE and P. P
| SUGO’s ESD compounds are formulated by combining carbon fiber,carbon powder, non-carbon based homogeneous materials and thermoplastic resins. These compounds meet the needs of many industries where permanent reduction of electrostatic hazards is required, our materials are: | ||||
| ESD Series | ||||
| TYPE | Material | Grade | Processing method | Application |
| ESD ENGEERING PLASTICS COMPOUND: | PA | ·Conductive 102x 105 ohms/square · Static dissipative 106x 109 ohms/square · Antistatic 108x 1011 ohms/square | Injection | Rod, sheet, IC trays, housings, electronic components, etc |
| PC | ||||
| PC/ABS | ||||
| PBT | ||||
| POM | ||||
| PPO/PPE | ||||
| ESD SPECIAL PLASTICS COMPOUND: | PPS | electrical & eletronics components, Auto parts, medical equipment, etc | ||
| PEI | ||||
| PES | ||||
| PSU | ||||
| PEEK | ||||
| LCP | ||||
| ESD GENERAL PLASTICS COMPOUND | ABS | Injection, extrusion | Rod, sheet, film, tube, etc | |
| PP | ||||
| PS | ||||
| PE | Injection, extrusion, blowing | |||
| ESD THERMOPLASTIC ELASTOMER | TPE | Injection, extrusion | Auto parts, extruded products, eletrical & eletronics components, traffic equipment | |
| TPR | ||||
| TPU | ||||
| TPV | ||||
